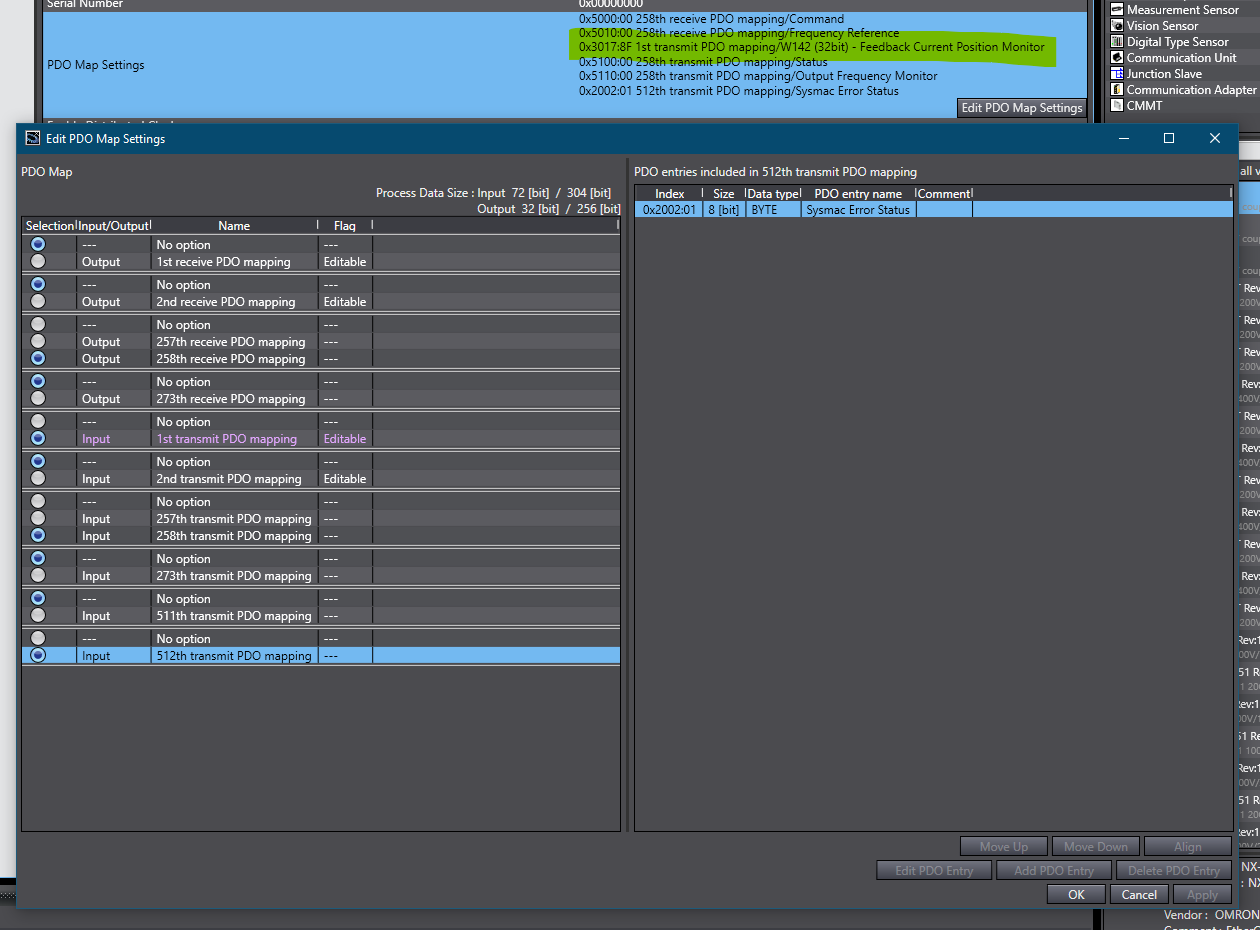

The encoder data from the M1 can be set up as a PDO to automatically receive 32 bit data. To do this you can add 0x3017:8F to one of the editable PDO's to get current position monitor feedback. You can then link this to a variable via the I/O map to receive this data from the controller every cycle.
