The needed encoder is HTL

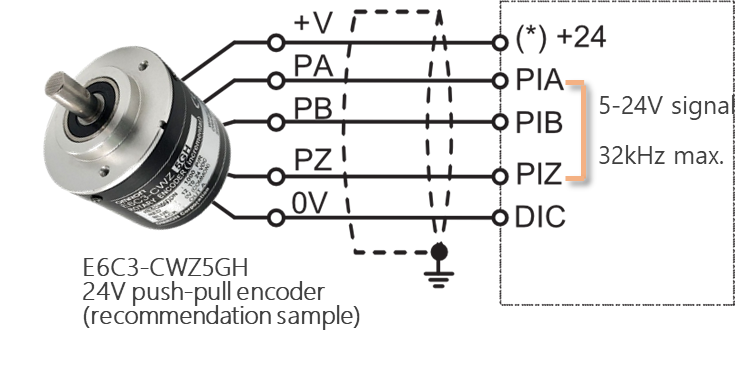

Wiring as shown below (if you feed the encoder externally you do not need to connect the +24
(For an 1.0 version M1: Switch one of the inputs (E001/2/3 etc) to Speed Pos Switching (137)
Map S006 to your PDO settings and switch the corresponding bit in the uint to high. (xx123456 inputs start at bit 2
Output does not need to be switched to count but needs to be switched for the correct mode (on for speed, of for positioning))
