3G3M1 STD safety circuit with safety relais G9SE-401 and NX Safety

Overview:

This document describes the procedure for connecting the 3G3M1-STD to a NX-series safety master via the EDM signal from 3G3M1-STD and provide the quick setup procedure.

1. 3G3M1-STD

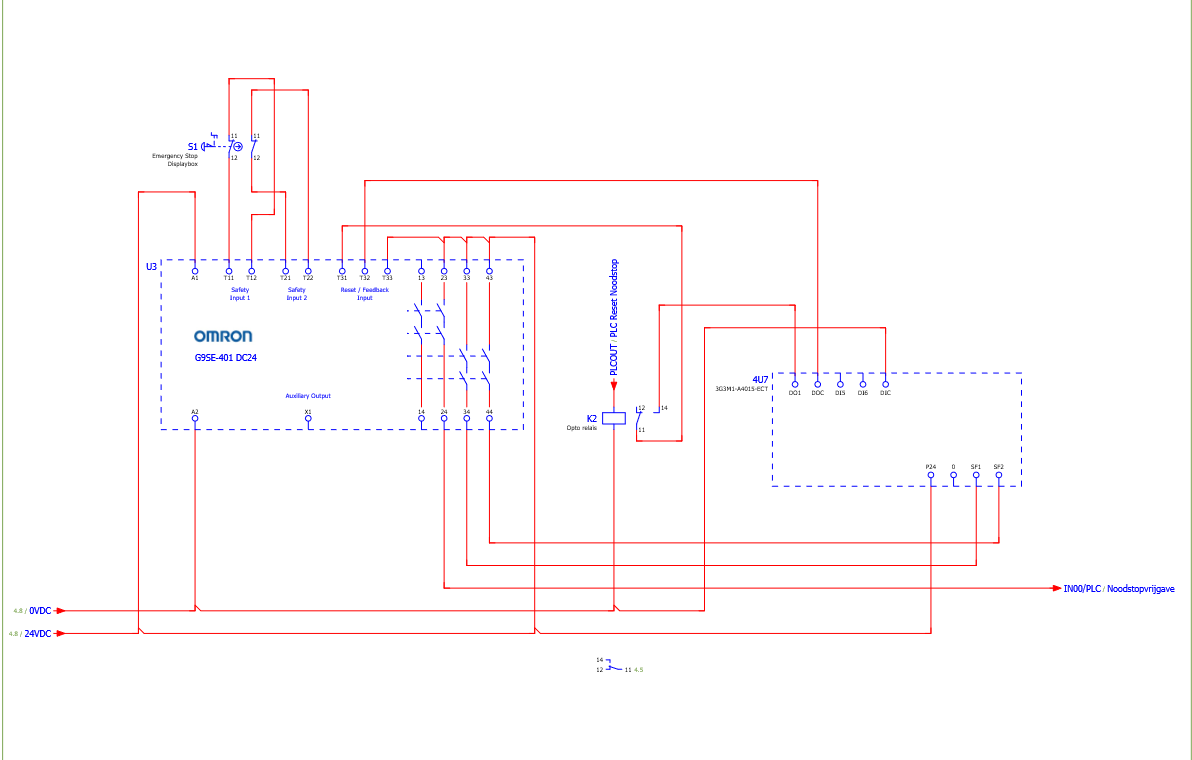

2. G9SE
3. NXSL3300
4. NXSOS400

Setup

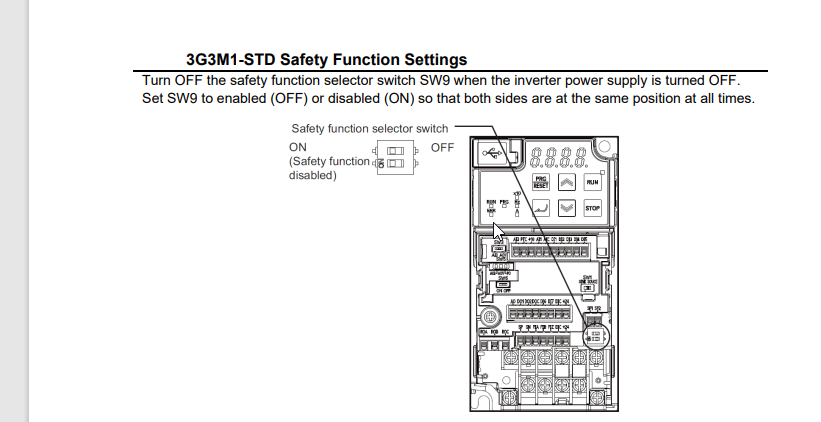

Turn OFF the safety function selector switch SW9 when the inverter power supply is turned OFF. Set SW9 to enabled (OFF) or disabled (ON) so that both sides are at the same position at all times.

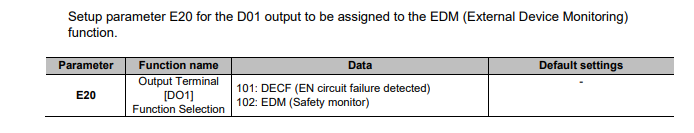

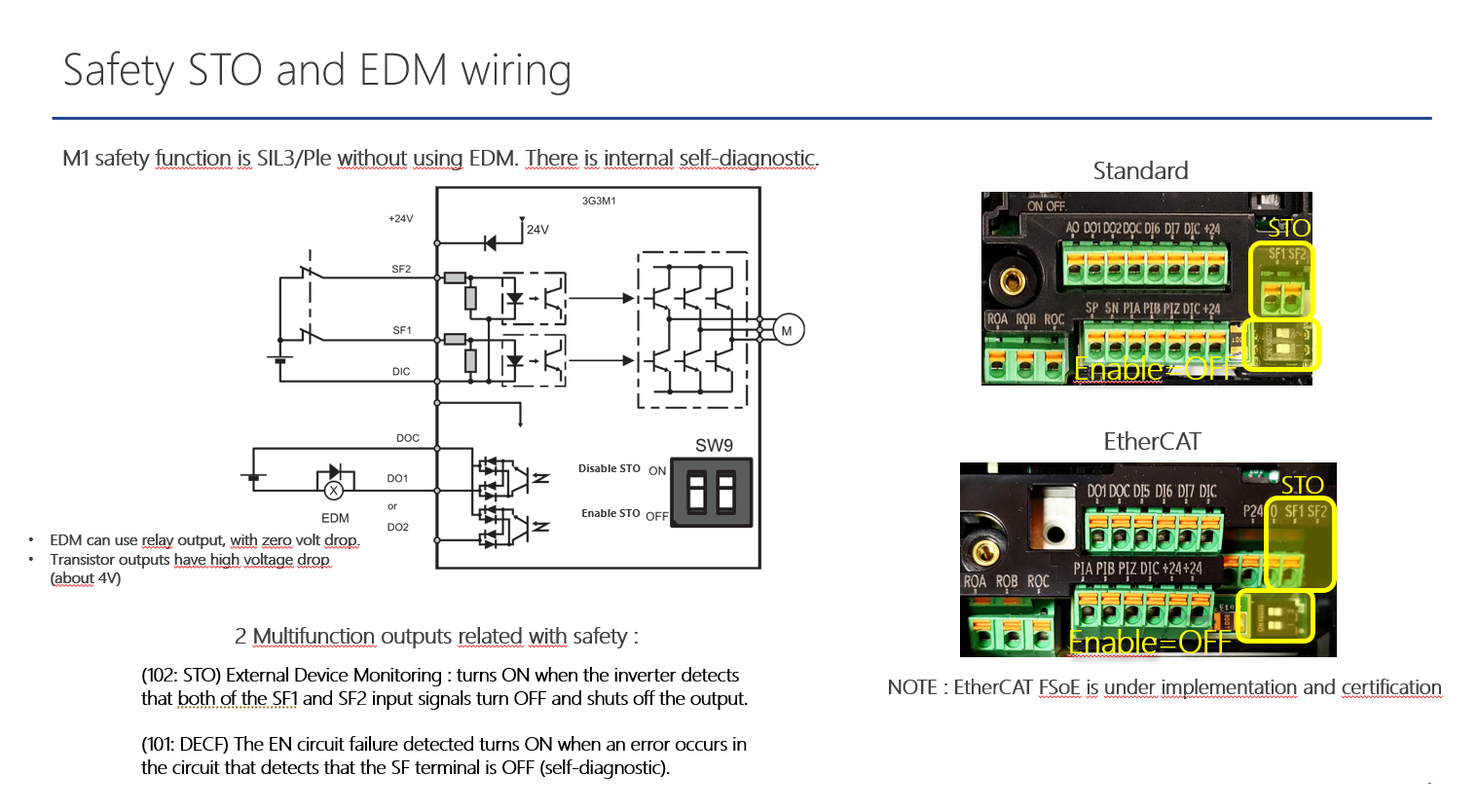

Setup parameter E20 for the D01 output to be assigned to the EDM (External Device Monitoring) function

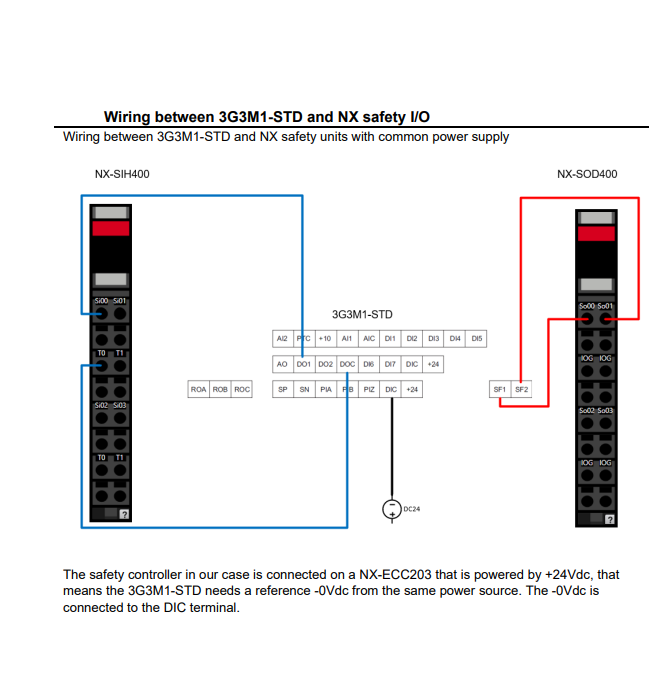

Configuration  and setup 3G3M1-STD and NX Safety

Setup parameter E20 for the D01 output to be assigned to the EDM

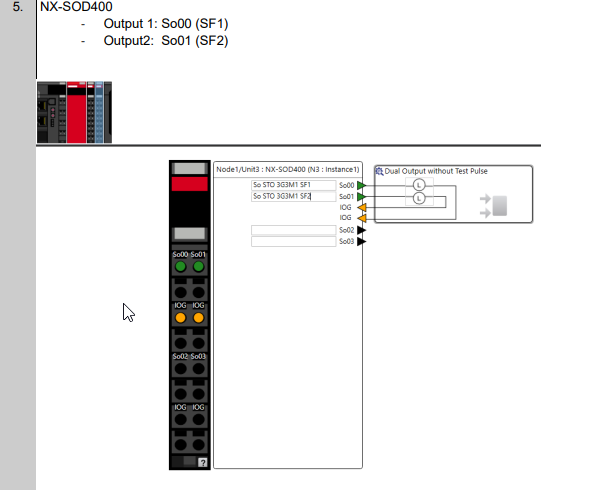

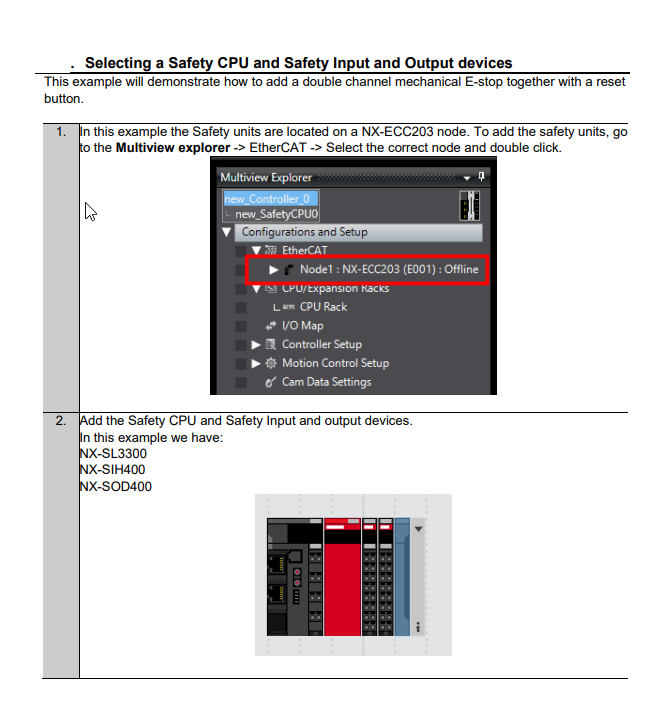

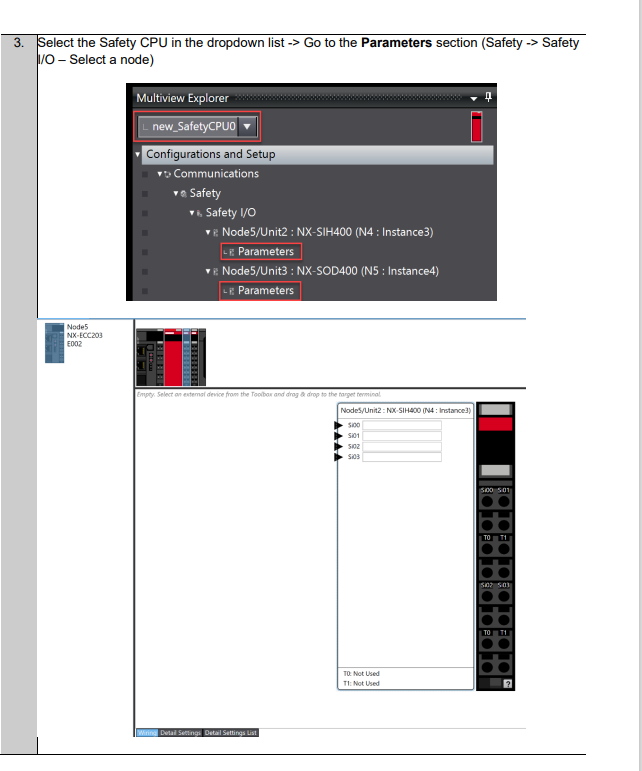

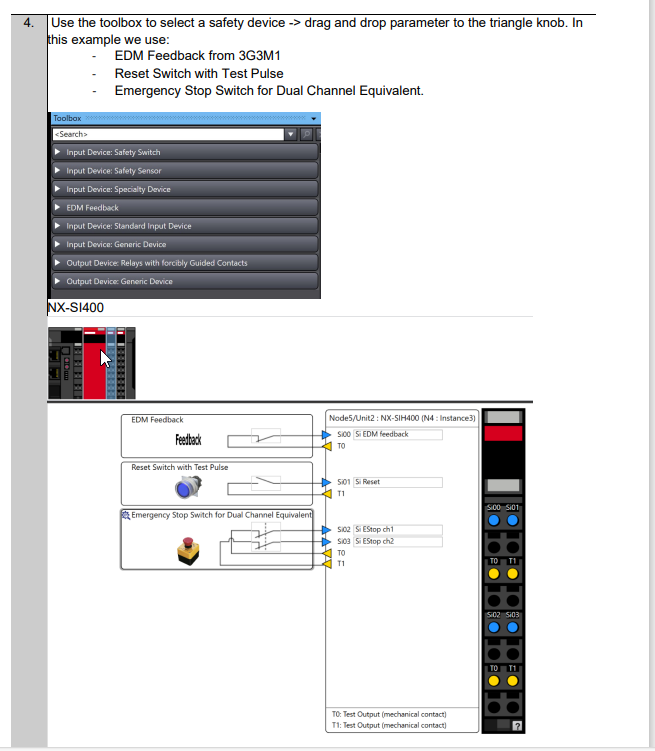

Sysmac Studio -Configuration en Setup

Setup parameter E20 for the D01 output to be assigned to the EDM (External Device Monitoring) function.
