3G3M1-A2022 2027 RFI filter compatibility problem

3G3M1-A2022/2037 RFI filter compatibility problem

Overview

1. 3G3M1-A2022/2037
2. AX-FIC4044-SE

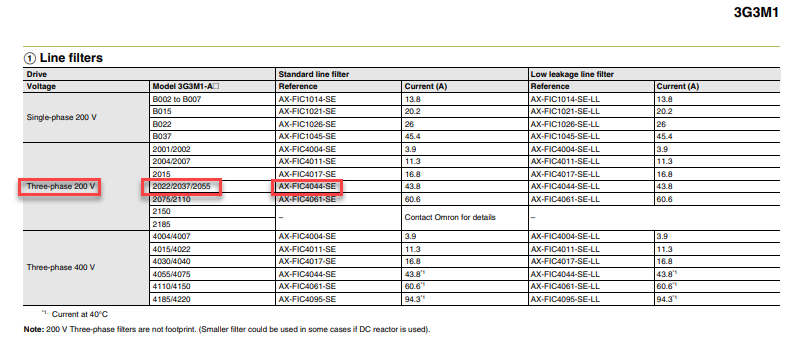

RFI Filter compatibility problem on our 3G3M1-A2022/2027: cable and wiring lugs is much large

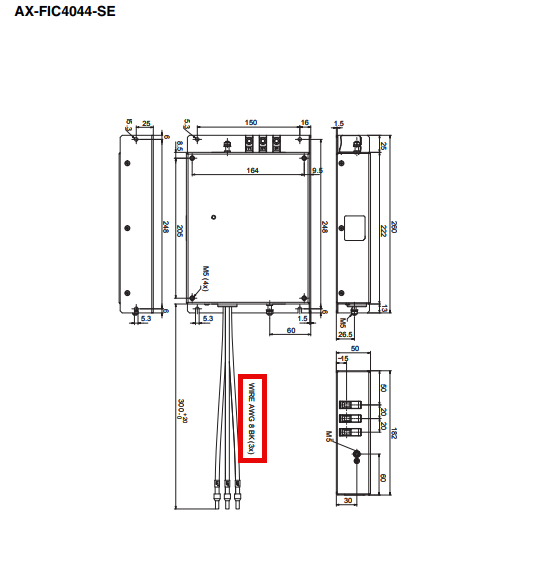

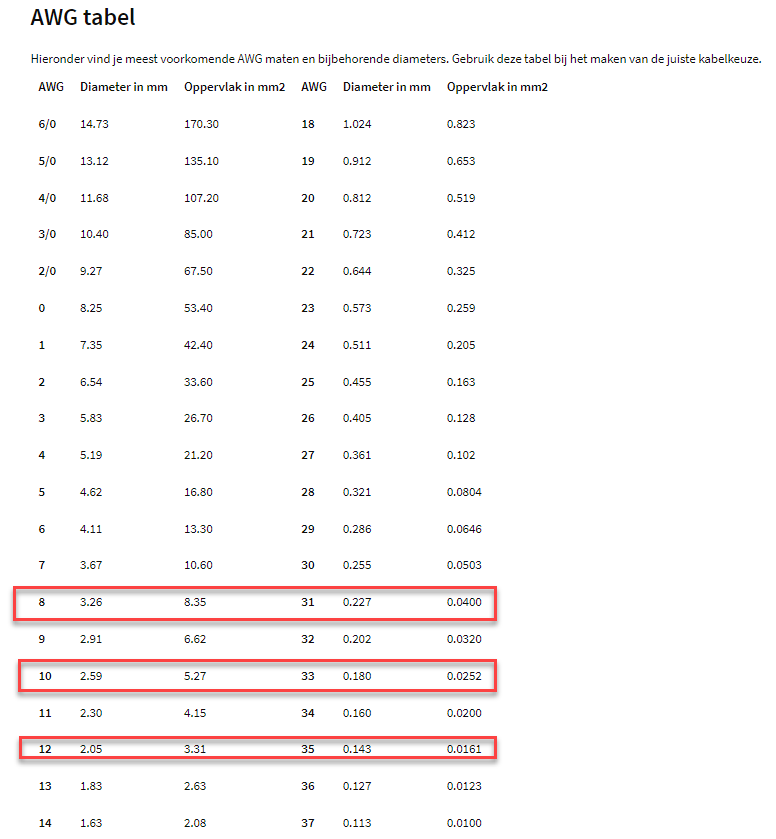

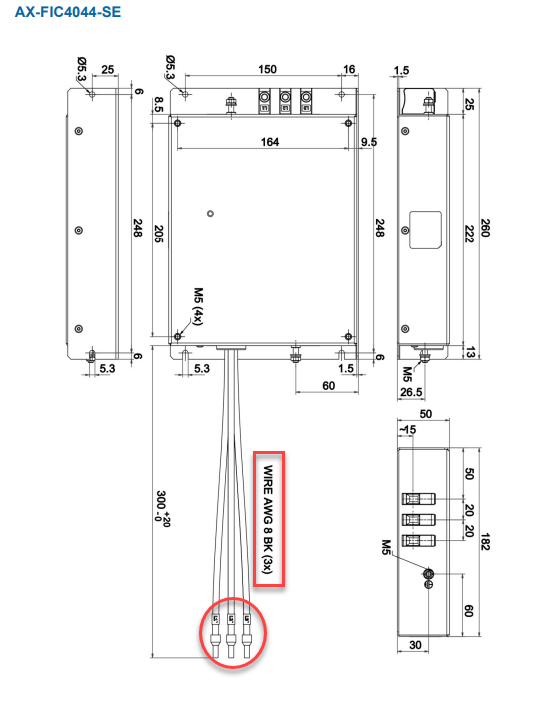

For the AX-FIC4044-SE the cables are AWG 8 not suitable for the 3G3M1-A2022/2037 where terminals are 10 AWG.

Alternative filter:

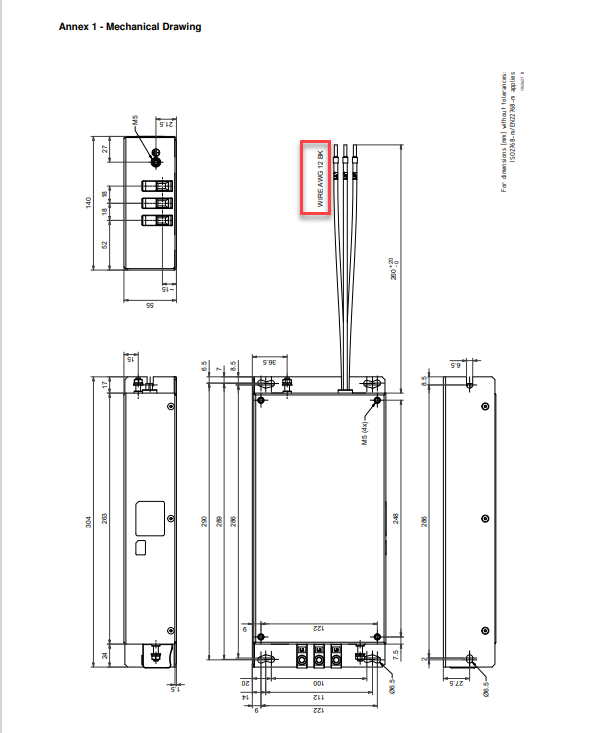

On this case use the little smaller filter AX-FIC4030-SE, that has 12 AWG terminals (also not an footprint filter)

Alternativ netfilter:

On this case the little smaller filter AX-FIC4030-SE, that has 12 AWG terminals
