CS1W-CIF31 Hardware, USB Driver And Operating System Compatibility

Modified on Sun, 11 May, 2025 at 10:46 PM

Introduction

This article explains how to recognize the difference between the hardware models of the CS1W-CIF31 as well as the compatibility between Hardware, USB Drivers and Operating Systems for the CIF31.

Content

  • How to recognize the CS1W-CIF31 hardware model
  • Hardware, USB Driver and Operating System Compatibility

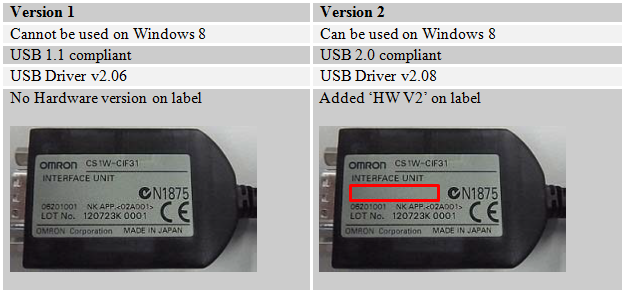

How to recognize the CS1W-CIF31 hardware model

Note: CS1W-CIF31 produced with Lot No. 130702K or higher are hardware version 2.

Hardware, USB Driver and Operating System Compatibilty

The USB Driver v2.06 cannot be used with CS1W-CIF31 hardware version 2. If hardware version 2 is used; please install USB Driver v2.08 in order to get the CS1W-CIF31 properly working.

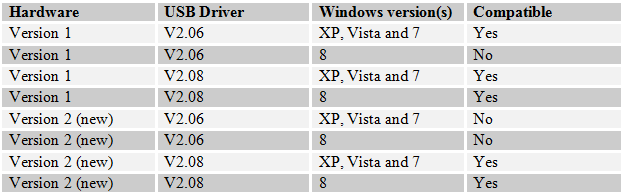

The compatibility overview is shown below.

The USB drivers can be found in the myOMRON downloads are: /downloads/4.Products/Software/USB drivers/CS1W-CIF31/
