Conversion of connections Omron MX2 to M1 frequency controller

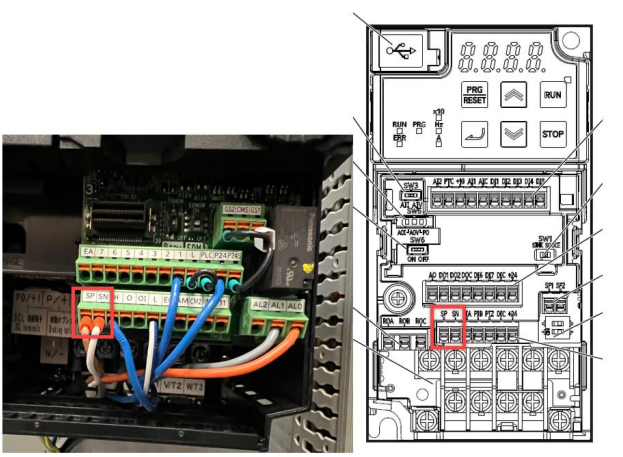

Conversion of connections Omron MX2 to M1 frequency controller • The wiring of ‘SP’ and ‘SN’ must be plugged into ‘SP’ and ‘SN’:

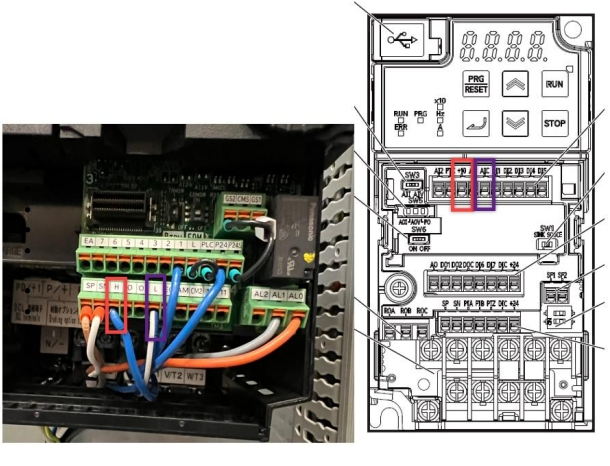

• The wiring of ‘H’ and ‘L’ should be plugged into ‘+10’ and ‘AIC’:

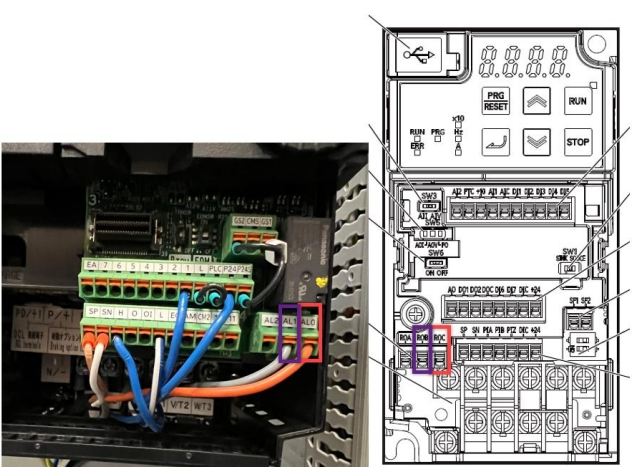

• The wiring of ‘AL0’ and ‘AL1’ must be plugged into ‘ROC’ and ‘ROB’:

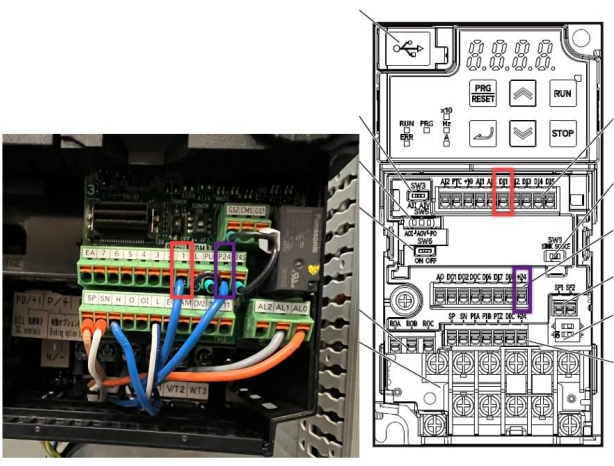

• The wiring of ‘1’ and ‘P24’ should be connected to ‘DI1’ and ‘+24’:

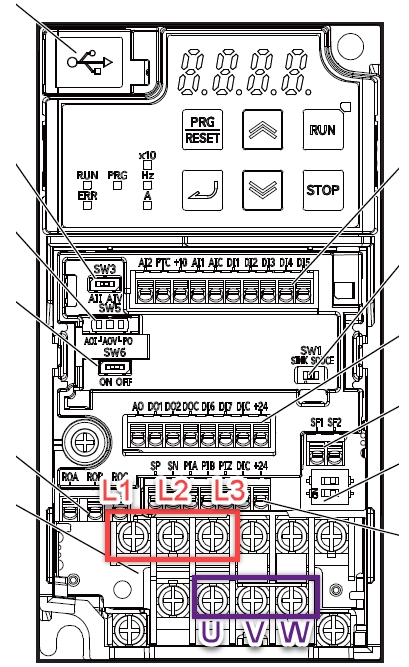

• The power connections of the power supply and the motor remain on the same terminal names, L1, L2 and L3 as well as U, V and W.
