his article covers the main differences between Omron's 3G3MX2-V1 models and our new 3G3MX2-V2. Please note that we are only covering the main differences here and if you require further information or more details about a specific function or application, we recommend contacting your local Omron office or representative for further support.
Safety

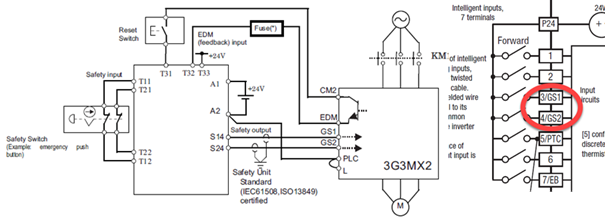

- MX2-V1 has a SIL2 rating and is able to achieve a maximum of PLd
Click to Zoom

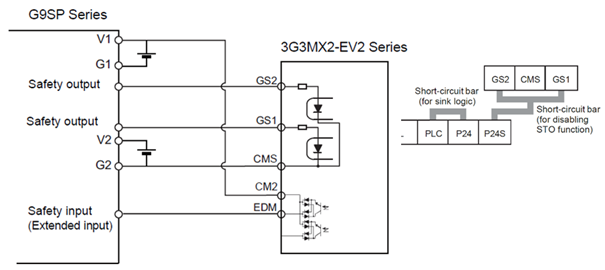

- MX2-V2 has a SIL3 rating and is able to achieve a maximum of PLe
- Note that EDM is required to be implemented when using safet function
