What Is The Difference Between NPN Transistor Output And PNP Transistor Output Of The Sensor?

Modified on Sun, 11 May, 2025 at 10:40 PM

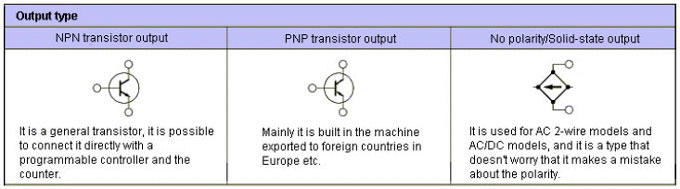

Output type chart


  • NPN output type is used when connecting a load between power supply + and sensor output terminal.
  • PNP output type is used when connecting a load between sensor output terminal and power supply -.
    This type is used a lot in Europe from a safety viewpoint because the load is not driven even if somewhere within the wiring connected with the sensor output terminal it is short-circuited.

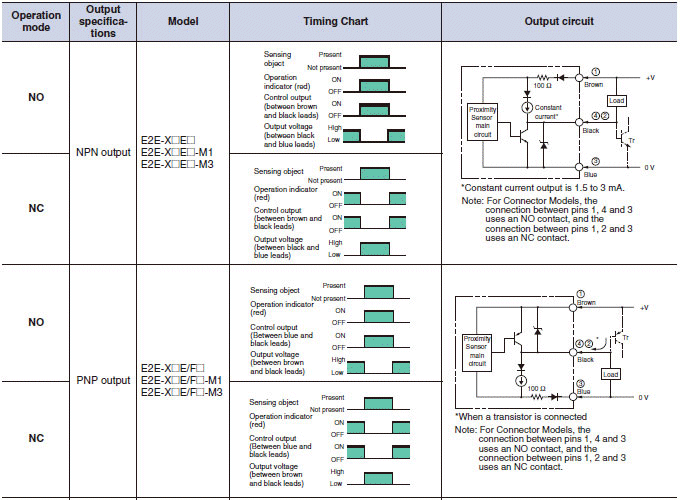

  • The following is a typical output circuit diagram of the E2E.

    Output diagram
