Although it differs depending on the model, the power supply should not operate at all or the operation mode becomes switched.

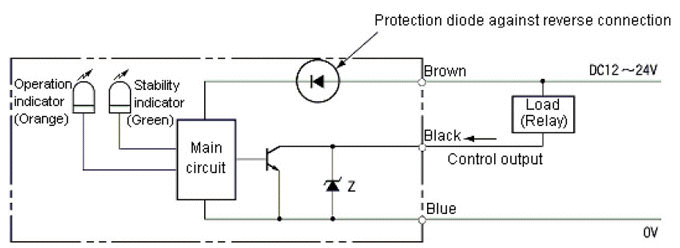

1. The sensor is not destroyed because the protection diode works against reverse connection applies.

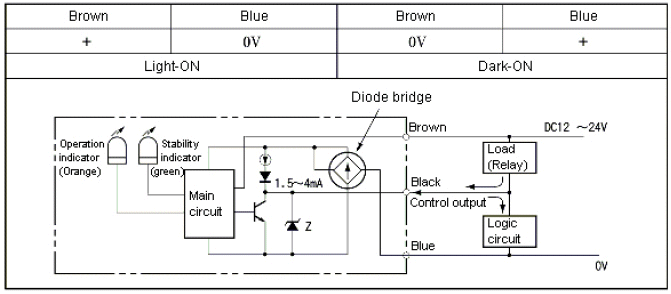

2. The diode bridge is in the power supply input, and the operation mode is switched.
(*1.)E3S-GS, E3S-VS, E3L, E3S-R[]E[]series
(Refer to the applicable date sheets for details.)
1. The sensor is not destroyed because the protection diode works against reverse connection applies.
2. The diode bridge is in the power supply input, and the operation mode is switched.
(*1.)E3S-GS, E3S-VS, E3L, E3S-R[]E[]series
(Refer to the applicable date sheets for details.)
