With the release of the E5CC Temperature Controller the question came if it could also be connected to PROFIBUS.
And for sure it can be through the PRT1-SCU11 PROFIBUS gateway. The PRT1-SCU11 needs to be firmaware version 2 and as device select the E5_N modules. The E5CC has the same parameter mapping as the E5_N and therefore it will work with the sam modules.

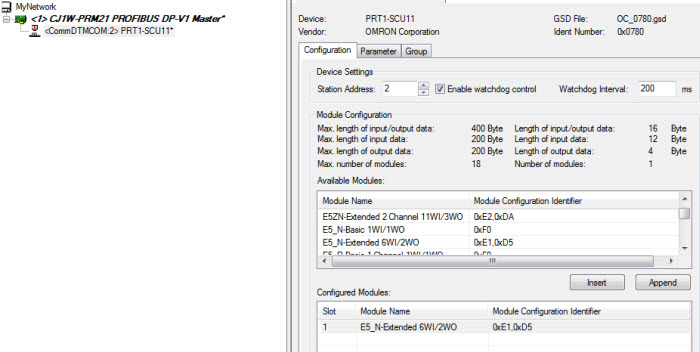

Below a configuration example where a E5CC is connected to the PRT1-SCU11 but the modules of the E5_N are used.
