I Would Like More Information About The Bend-Resistant Performance Of A Cable For The Robot Cable Connector "EE-1010-R".

A Robot Cable for the EE-1010-R has bending tolerance that is over three times higher than a common cable (electric cable) for the EE-1010.

Refer to the following results of the Cable Bending Destruction Test.

Cable Bending Destruction Test

• Objective
  To evaluate the bend-resistant performance of a normal cable (electric wire) for the EE-1010 and a Robot Cable (electric wire) for the EE-1010-R.
• Conclusion
  A Robot Cable (electric wire) for the EE-1010-R has bending tolerance that is over three times higher than a normal cable (electric wire) for the EE-1010.
  Robot Cable: Absolutely cut off by bending about 43000 times
  Normal Cable: Absolutely cut off by bending about 12000 times
• Procedure

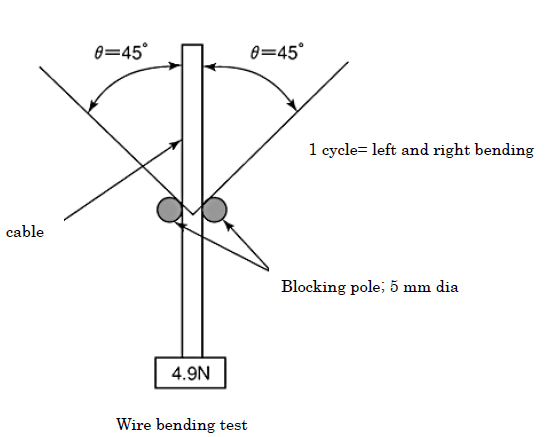

  As shown in the figure 1, reciprocating bending at an angle of 45 degrees is given at a rate of 55 times per minute with a load of 4.9N. This procedure should be repeated until a cable is absolutely cut off.
