Are Photomicro Sensors With The Light-ON/Dark-ON Selectable Operating Mode Available?

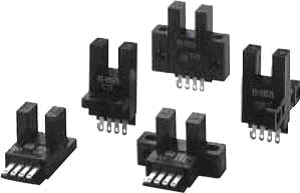

Yes. The EE-SX67[] Series for Through-beam type (with slot), the EE-SY671/672 for Reflex type are available.



Built-in models with 5 to 100mA direct switching capability



Light-ON⁄Dark-ON selectable operating mode (output configuration)



Response frequency as high as 1 kHz



Easy operation monitoring with bright light indicator



Wide operating voltage range from 5 to 24 VDC

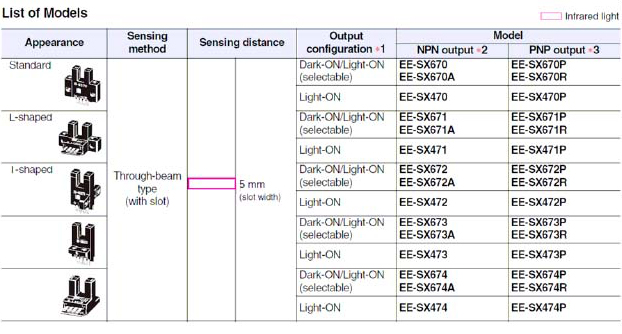

Models (EE-SX[][][]A,[][][]R) with operation indicators that are lit when light is interrupted (when sensing objects are detected) are available.



*1. The Dark-ON⁄Light-ON (selectable) models are normally used as dark-ON models. To use them as light-ON models, short-circuit the L terminal and positive (+) terminal.


An EE-1001-1 Connector with the terminals already short-circuited is also available. Additionally, Connector "EE-1001", "EE-1009", Cable Connector "EE-1006", "EE-1010", and Robot Cable Connector "EE-1010-R" with the open terminals are available.


*2. Model numbers ending in suffix A (e.g., EE-SX670A) indicate models for which the operation indicator will turn ON when the light is interrupted.



*3. Model numbers ending in suffix R (e.g., EE-SX670R) indicate models for which the operation indicator will turn ON when the light is interrupted.

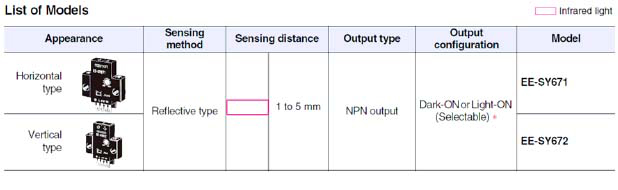

2. Photomicro Sensor "EE-SY671⁄672" (Diffuse Reflex ⁄Direct Current Optical Type)

Models with sensitivity adjuster



Easy adjustment with a built-in sensitivity adjuster



Easy operation monitoring with bright light indicator



Compact design with a special built-in IC makes it possible to directly switch currents up to 100mA.



Wide operating voltage range from 5 to 24 VDC



Smooth connection with Programmable Controllers as well as a variety of ICs and Relays is possible.



The Dark-ON⁄Light-ON (selectable) models are normally used as dark-ON models. To use them as light-ON models, short-circuit the L terminal and positive (+) terminal.


An EE-1001-1 Connector with the terminals already short-circuited is also available.


Additionally, Connector "EE-1001", "EE-1009", Cable Connector "EE-1006", "EE-1010", and Robot Cable Connector "EE-1010-R" with the open terminals are available.
