Built-in amplifier (the E2E Series, the TL Series)
The following will occur.
Voltage decreases with resistance component of cable
Extension of rise time of output waveform by the capacity between lines of cable

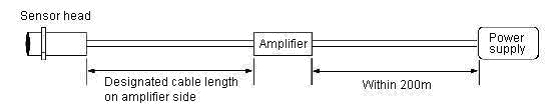

Therefore, please use more cable than the same nominal cross-sectional area and make the length of the cable to the power supply within 200m.
Separate amplifier (the E2C Series)
The capacity between lines of the cable changes when the cable length between the sensor and the amplifier is changed, the oscillation frequency is changed, and the characteristic change in the sensing distance and the temperature characteristic occurs.
Therefore, it is not warrantable if the cable length between the sensor and the amplifier is made outside regulations.
Linear output separate amplifier (the E2CA Series)
The capacity between lines of the cable changes when the cable length between the sensor and the amplifier is changed, the oscillation frequency is changed, and the characteristic change in the sensing distance, the temperature characteristic and linear output occurs.
Therefore, the cable length between the sensor and the amplifier is 3m or 5m. Please specify the cable length with the selector of the amplifier side.
The following will occur.
Voltage decreases with resistance component of cable
Extension of rise time of output waveform by the capacity between lines of cable
Therefore, please use more cable than the same nominal cross-sectional area and make the length of the cable to the power supply within 200m.
Separate amplifier (the E2C Series)
The capacity between lines of the cable changes when the cable length between the sensor and the amplifier is changed, the oscillation frequency is changed, and the characteristic change in the sensing distance and the temperature characteristic occurs.
Therefore, it is not warrantable if the cable length between the sensor and the amplifier is made outside regulations.
Linear output separate amplifier (the E2CA Series)
The capacity between lines of the cable changes when the cable length between the sensor and the amplifier is changed, the oscillation frequency is changed, and the characteristic change in the sensing distance, the temperature characteristic and linear output occurs.
Therefore, the cable length between the sensor and the amplifier is 3m or 5m. Please specify the cable length with the selector of the amplifier side.
