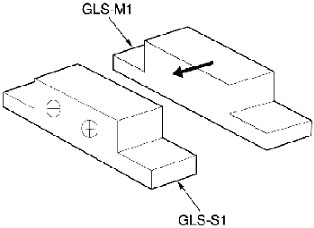

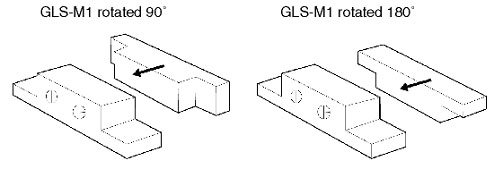

As shown in the following figures, there is no problem if the magnet section (GLS-M1) is rotated 180°. However, make sure to install it so that the direction of travel is in the direction of the arrow.

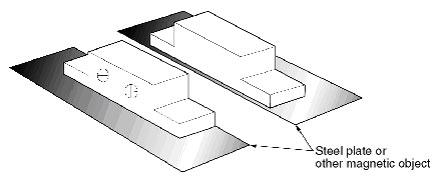

The sensing distance will decrease if the magnet section is mounted on a steel plate or other magnetic object. Check the sensing distance before operating GLS.
The sensing distance will decrease if the magnet section is mounted on a steel plate or other magnetic object. Check the sensing distance before operating GLS.
