What Combinations Of Connecting Cables And Servo Relay Units Are Required To Connect C200H-NC112 Position Control Units To A Servo Drive?

Modified on Sun, 11 May, 2025 at 10:39 PM

Refer to the following diagram.

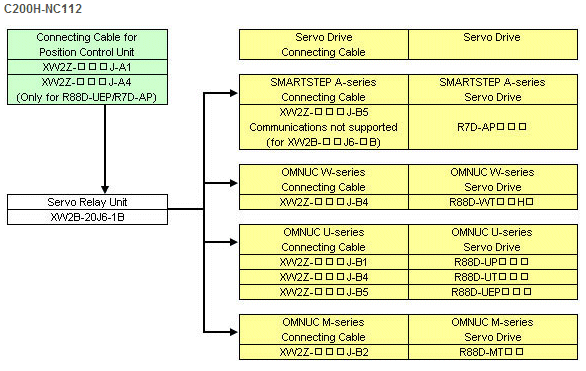

Connections for C200H-NC112 to servo drive
