What Are The Differences In Support Software, Instructions, And The Way Extended Data Memory Is Handled Between The C200HX/HG/HE PLCs And C200HX/HG/HE-Z PLCs?

Modified on Sun, 11 May, 2025 at 10:39 PM



  • The C200HX/HG/HE can be supported with pre-Windows DOS-based and Windows-based Support Software. The C200HX/HG/HE-Z is supported only by Windows-based support software.
  • The C200HX/HG/HE supports expansion instructions. Some instructions do not have function codes. To make the C200HX/HG/HE-Z compatible with the C200HX/HG/HE, expansion instructions can be set, or 3-digit function codes can be used. Also, symbol instructions can also be used.
  • Extended Data Memory on the C200HX/HG/HE can only be used with certain instructions. On the C200HX/HG/HE-Z, Extended Data Memory can be used with almost every instruction.

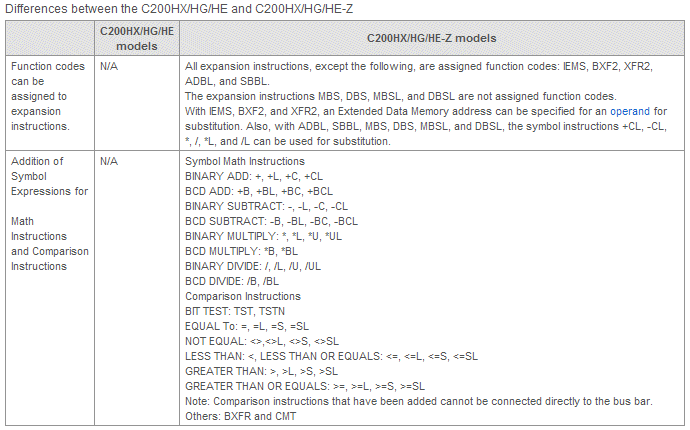

Refer to the following for information on the instructions that have been added to the C200HX/HG/HE-Z.
