How Do I Program Repeatedly Turning A Bit OFF For 1 Second And ON For 1.5 Seconds?

Modified on Sun, 11 May, 2025 at 10:39 PM

Introduction

If the ON and OFF time is 0.5 s or 0.1 s, a Clock Pulse Bit (P_ls and P_0_2s) can be used as an input.

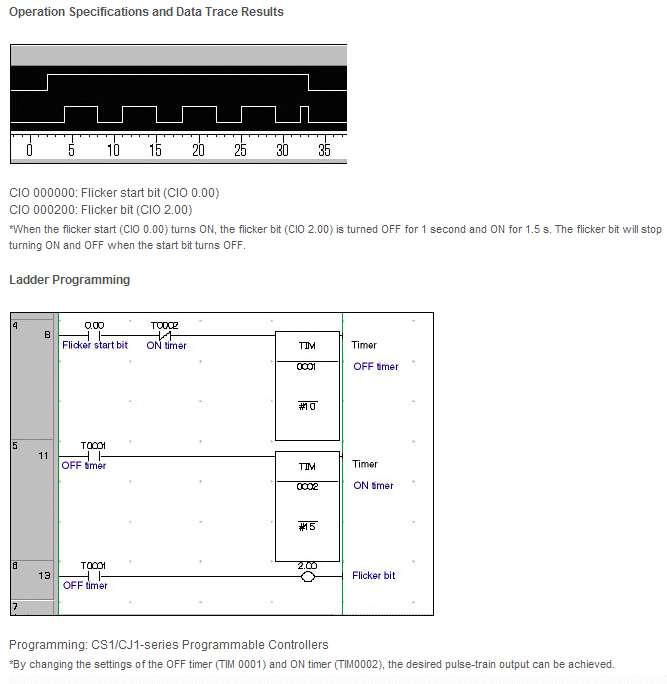

The following method can be used to create a flicker program that outputs a pulse-train for ON and OFF times for which Clock Pulse Bits are not provided.
div>
Example
