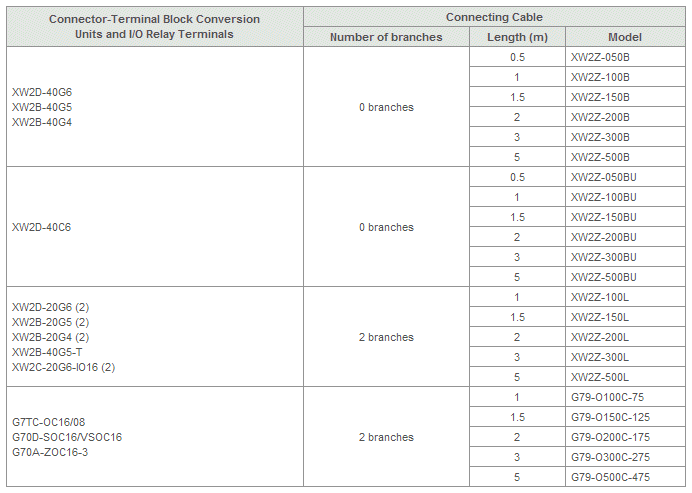

The combinations of Connector-Terminal Block Conversion Units, I/O Relay Terminals, and Connecting Cables that can be used with C200H-OD219 are shown in the following table.
The following models can be used with C200H-OD219: XW2D-40G6, XW2B-40G5, XW2B-40G4, XW2D-40C6, XW2D-20G6, XW2B-20G5, XW2B-40G5-T, XW2B-20G4, XW2C-20G6-IO16, G7TC-OC16/08, G70C-SOC16/VSOC16, and G70A-ZOC16-3.
The following models can be used with C200H-OD219: XW2D-40G6, XW2B-40G5, XW2B-40G4, XW2D-40C6, XW2D-20G6, XW2B-20G5, XW2B-40G5-T, XW2B-20G4, XW2C-20G6-IO16, G7TC-OC16/08, G70C-SOC16/VSOC16, and G70A-ZOC16-3.
