The library MRTU_NJ_Master allow to send Modbus RTU request.
The SCU serial port should be set to ‘Serial Gateway’ mode and 8 data bits.

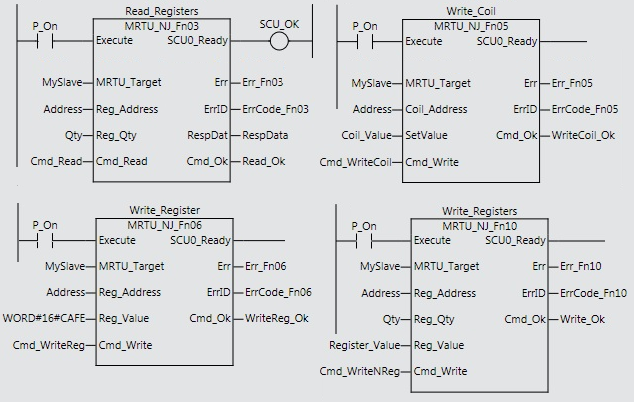

List of implemented function code:
Code | Modbus Function | Function Block |
0x01 | Read Coils | MRTU_NJ_Fn01 |
0x02 | Read Discrete Inputs | MRTU_NJ_Fn02 |
0x03 | Read Holding Registers | MRTU_NJ_Fn03 |
0x05 | Write Single Coil | MRTU_NJ_Fn05 |
0x06 | Write Single Register | MRTU_NJ_Fn06 |
0x10 | Write Multiple Registers | MRTU_NJ_Fn10 |
