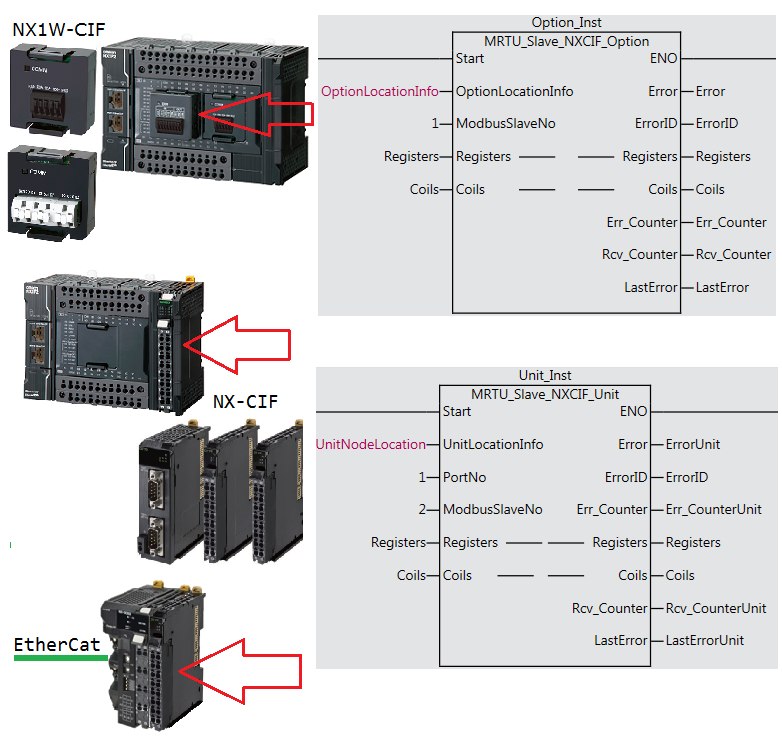

The library MRTU_Slave_NXCIF include 2 function blocks:
- MRTU_Slave_NXCIF_Option
for option board NX1W-CIF inserted in front of NX1P2.
- MRTU_Slave_NXCIF_Unit
for NX-CIF-101/105/210 Unit installed on I/O NX Bus (right side of the NX1P2 controller) or installed on EtherCat coupler NX-ECC
