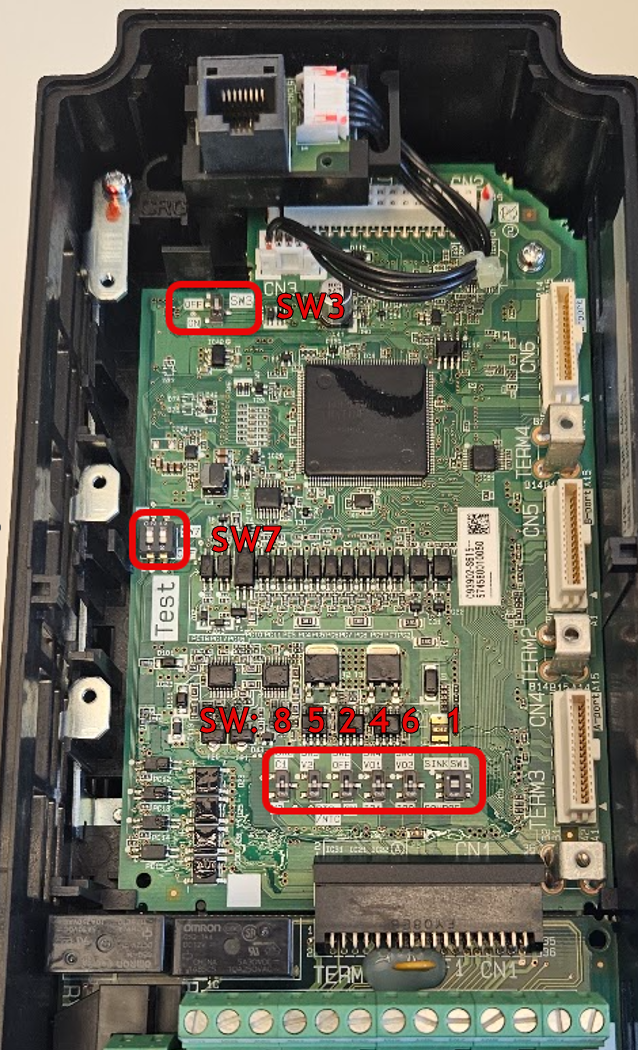

8 different dip-switches:•SW1: Sink/Source for the inputs •SW2: End-resistor for RS485/Modbus RTU on the board (SP/SN) •SW3: End-resistor for RJ45 to the operating panel •SW4: V / C switch for analogue output 1, default is voltage. •SW6: V / C switch for analogue output 2, default is voltage. •SW8: V / C switch for analogue input 2, default is voltage. •SW5: PTC / V switch for analogue input 3, default is voltage •SW7: Safety function selector. Default is ON = safety not in use. |  |
