Connection Diagram NT3S (models 121/123/124) - Siemens S7200/300

Modified on Sun, 11 May, 2025 at 10:43 PM

Objectives
This technote illustrates the connection diagram for the NT3S - Siemens S700/300
Introduction
Note: The cable shown here (and the driver Siemens NTXs v1.01) are NOT compatible with the new CPU Siemens C series (eg S7300C)
Content

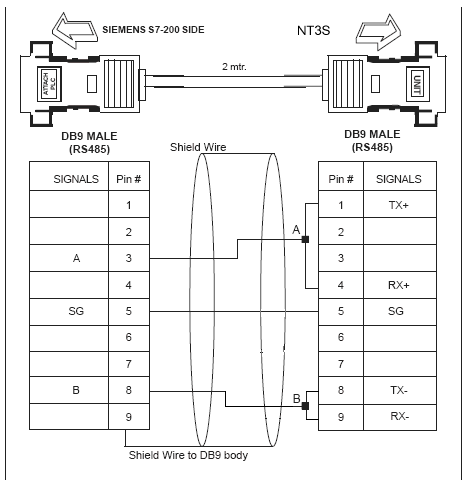

NT3S connection diagram
