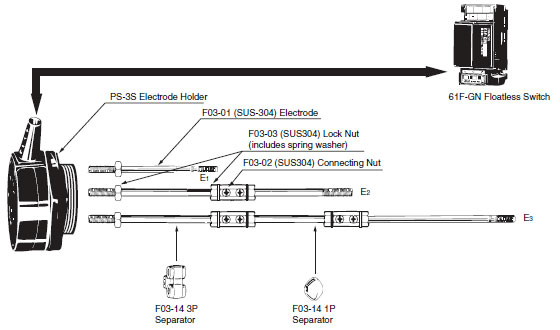

Number of Parts Required During Installation (Bar Electrode)
Automatic Water Supply or Drainage Control (Example)
Automatic Water Supply or Drainage Control (Example)
Number of Parts Required When E1 = 1 m, E2 = 2 m, and E3 = 3 m:
| 61F-GN: | 1pc |
| PS-3S: | 1pc |
| F03-01 (SUS304): | 6pcs |
| F03-02 (SUS304): | 3pcs |
| F03-03 (SUS304): | 9pcs |
|
F03-14 3P: |
1pc |
|
F03-14 1P: |
1pc |

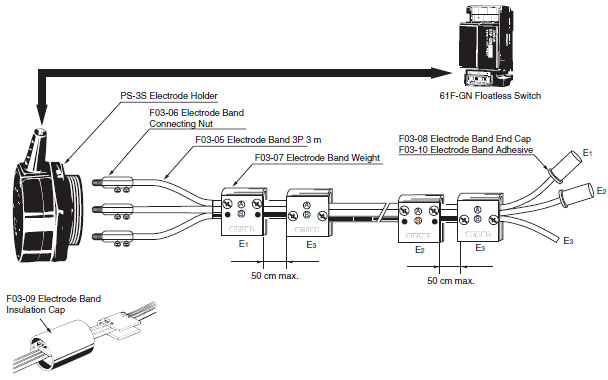

Number of Parts Required During Installation (Electrode Band)
Automatic Water Supply or Drainage Control (Example)
Number of Parts Required for a 3-m Electrode Band:
| 61F-GN: | 1pc |
| PS-3S: | 1pc |
| F03-06: | 3pcs |
| F03-05 3P: | 3m |
| F03-07: | 4pcs |
| F03-08: | 2pcs |
| F03-09: | 2pcs |
|
F03-10: |
1pc |
