Knowledge base Sensing Photoelectric Sensors

What Are The Sensing Position Characteristics Of Slot-Type Photomicro Sensors?

Modified on Sun, 11 May, 2025 at 10:43 PM

See the following diagrams.

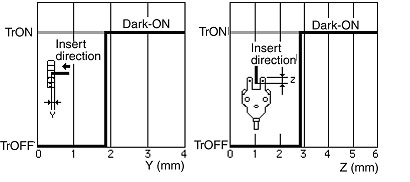

EE-SX77

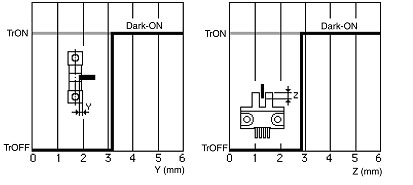

EE-SX47[]/SX67[]



EE-SPX74[]

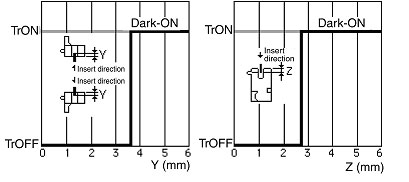

EE-SPX740/742/743

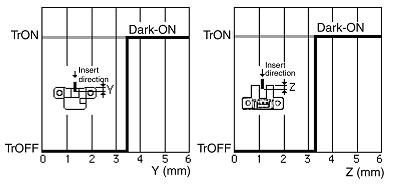

EE-SPX741

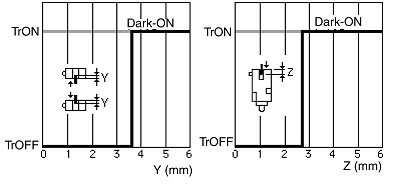

EE-SPX-W

EE-SPX302-W2A
EE-SPX304-W2A
EE-SPX306-W2A

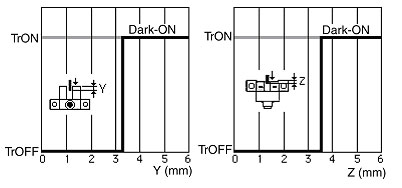

EE-SPX305-W2A



EE-SPX303

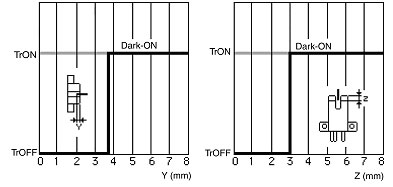

EE-SPX301
