Send_SMS_NXCIF Library Documentation
The library Send_SMS_NXCIF initializes a standard modem and sends dedicated messages using Hayes commands.
When activated, the function block sends the following initialization sequence:
| Command | Description |
|---|---|
| ATE0 | Echo OFF |
| &D0 | DTR ignored |
| +IPR=9600 | Speed 9600Bps |

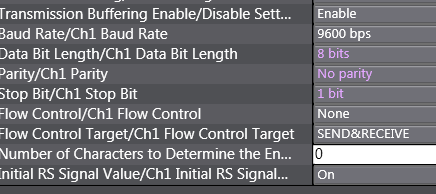

| +ICF=3,4 | Format 8,N,1 |
| +IFC=0,0 | No RTS/CTS control |
Then request for the SIM status: AT+CPIN?<Cr><Lf>
If the response contains SIM PIN, it sends the PIN code: AT+CPIN=PINcode<Cr><Lf>
If the response contains READY, the FB requests the signal level: AT+CSQ<Cr><Lf>
The value is output to the variable SignalQuality.

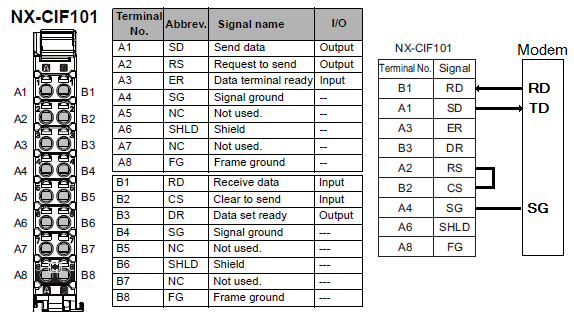

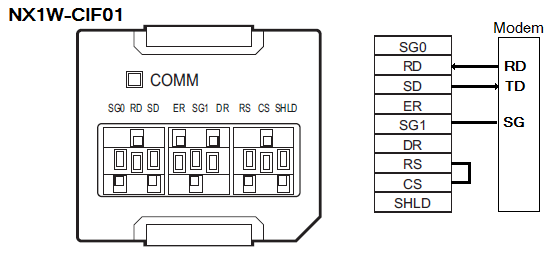

Wiring:

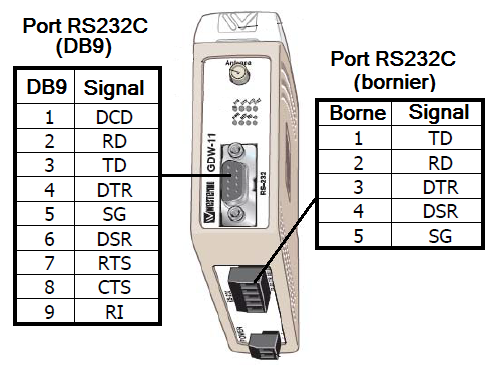

Example with the Westermo GDW-11
Setup

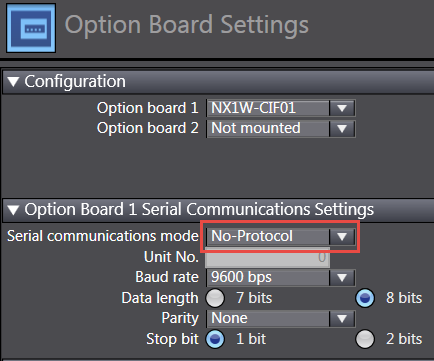

With an option NX1W-CIF, No-Protocol should be selected

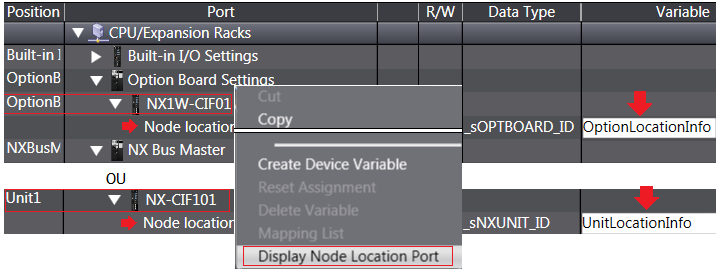

The location information of the CIF Node Location Port is obtained with a right click on the CIF Option or CIF Unit in the I/O Map

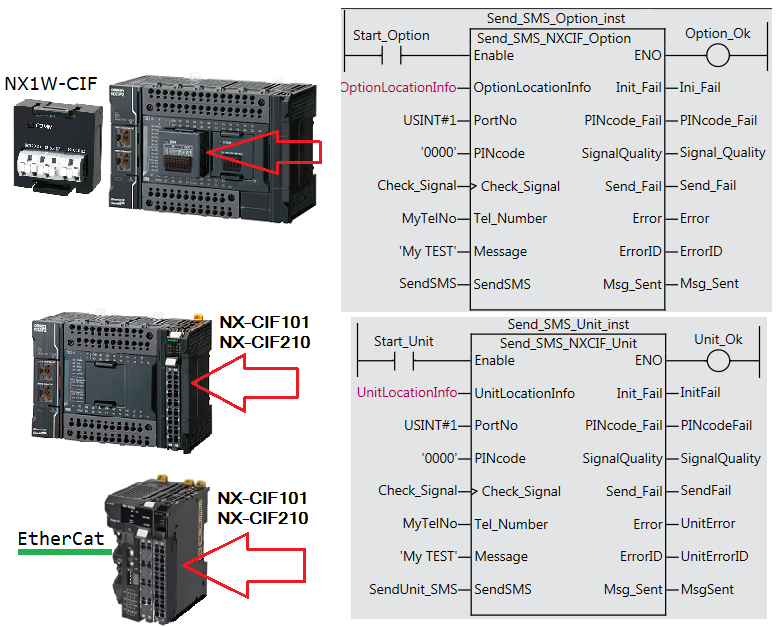

Input variables:
| Name | Type | Value | Description |
|---|---|---|---|
| Enable | BOOL | ON, OFF | |
| OptionLocationInfo or UnitLocationInfo | _sOPTBOARD_ID or _sNXUNIT_ID | --- | Location information of NXC1W-CIF or NX-CIF Unit |
| PortNo | USINT | 1, 2 | Serial port number |
| PINcode | STRING[5] | --- | PIN code of SIM card |
| Check_Signal | BOOL | ON, OFF | Request to read signal level |
| Tel_Number | STRING[14] | --- | Telephone number |
| Message | STRING[159] | --- | Message to send |
| Send_SMS | BOOL | ON, OFF | Command to send SMS |
Output variables:
| Name | Type | Value | Description |
|---|---|---|---|
| ENO | BOOL | OFF, ON | FB activated |
| Init_Fail | BOOL | OFF, ON | The initialization sequence failed |
| PINcode_Fail | BOOL | OFF, ON | PIN code rejected |
| SignalQuality | STRING[6] | --- | Signal level |
| Send_Fail | BOOL | OFF, ON | Fail sending the SMS |
| Error | BOOL | OFF, ON | Error flag. If ErrorID=0: modem error |
| ErrorID | WORD | 0-FFFF | An instruction execution failed (input error code at support-omron.fr) |
| Msg_Sent | BOOL | OFF, ON | Message sent |
Example of communications between a NX1P and a Westermo (WEST) modem
Initialization:
[10:55:30.355] NX1P: ATE0;&D0;+IPR=9600;+ICF=3,4;+IFC=0,0<Cr><Lf>
[10:55:30.480] WEST: <Cr><Lf>OK<Cr><Lf>
[10:55:30.820] NX1P: AT+CPIN?<Cr><Lf>
[10:55:30.879] WEST: <Cr><Lf>+CPIN: SIM PIN<Cr><Lf>
[10:55:31.285] NX1P: AT+CPIN=0000<Cr><Lf>
[10:55:32.152] WEST: <Cr><Lf>OK<Cr><Lf>
[10:55:33.355] NX1P: AT+CSQ<Cr><Lf>
[10:55:33.414] WEST: <Cr><Lf>+CSQ: 31,0<Cr><Lf><Cr><Lf>OK<Cr><Lf>
Sending My TEST:
[10:59:03.004] NX1P: AT+CMGS="+336xxxxxxxx"<Cr><Lf>
[10:59:03.094] WEST: <Cr><Lf>>
[10:59:04.063] NX1P: My TEST<26>
[10:59:06.539] WEST: <Cr><Lf>+CMGS: 23<Cr><Lf><Cr><Lf>OK<Cr><Lf>
