Yes, they can.
1. Pump Control

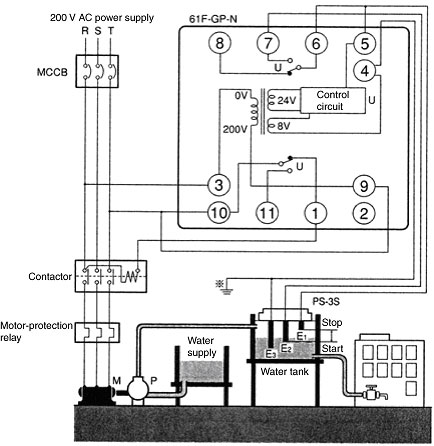

Use the same connections as the 61F-GP-N, shown in the following diagram.
2. Liquid Level Control Only
Liquid level detection can be performed by leaving the E2 electrode unused and making no connections to terminals 6 and 7.
1. Pump Control
Use the same connections as the 61F-GP-N, shown in the following diagram.
2. Liquid Level Control Only
Liquid level detection can be performed by leaving the E2 electrode unused and making no connections to terminals 6 and 7.
