What Are The Specifications Of The NT-AL001 RS232C/RS-422A Link Adapter?

Modified on Sun, 11 May, 2025 at 10:39 PM

Please refer to the following data.

General Specifications

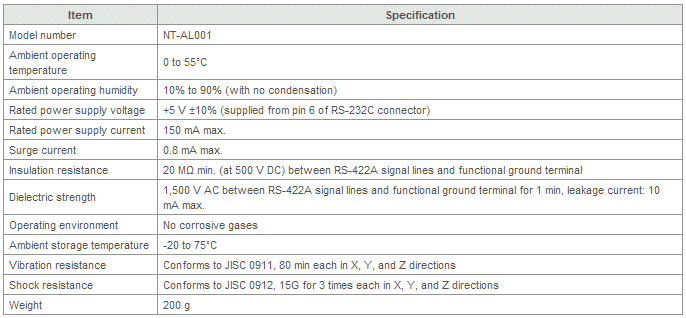

Link Adapter specification table
Link Adapter specification table

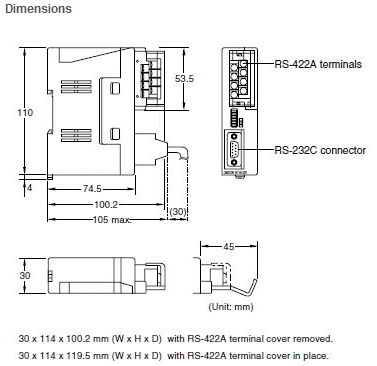

Dimensions for link adapter
